R6 2017-2019 - TRIPLE CLAMP - ROAD VERSION

R6 2017-2019 - TRIPLE CLAMP - ROAD VERSION

420.00

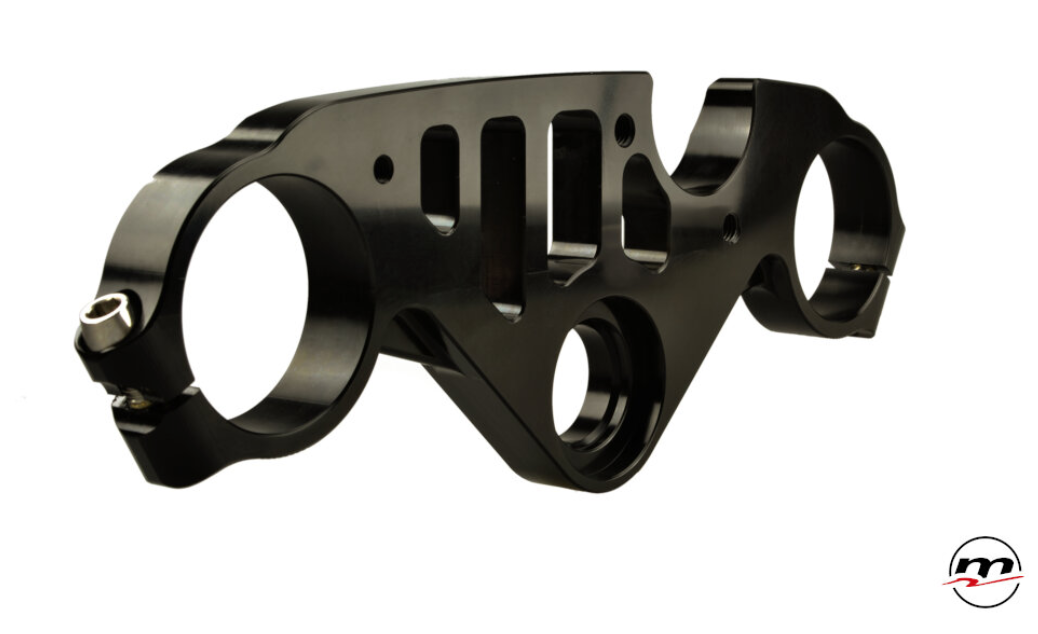

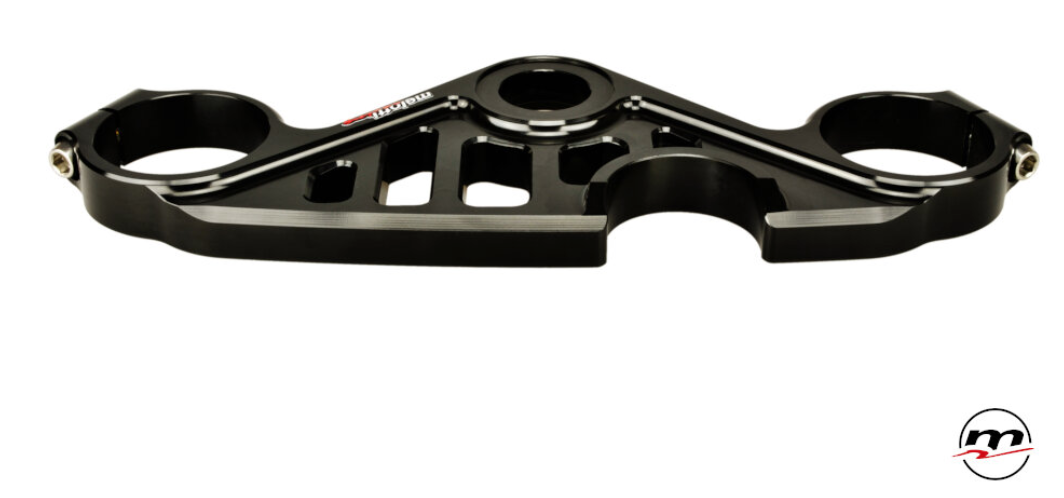

Release 1.02 of the R6 2017 steering plate designed for the younger sister of the Iwata company, our technical staff wanted to include the most effective solutions in an attractive design in this component.

While the canonical measurements of wheelbase and offset head tube offset remain unchanged, this plate boasts a considerable weight reduction, from 526 grams of the standard plate to 478 grams.

Maintaining excellent rigidity during the braking phase and thanks to the through pockets, it allows a progressive torsional capacity to facilitate insertion and cornering, a determining factor for the motorcyclist who wants to bring this 600 to its limit; all this will result in a better feeling on the front axle.

Note the introduction of two ribs developed to maintain the torsional characteristics of the plate in order to obtain a further lightening of the same.

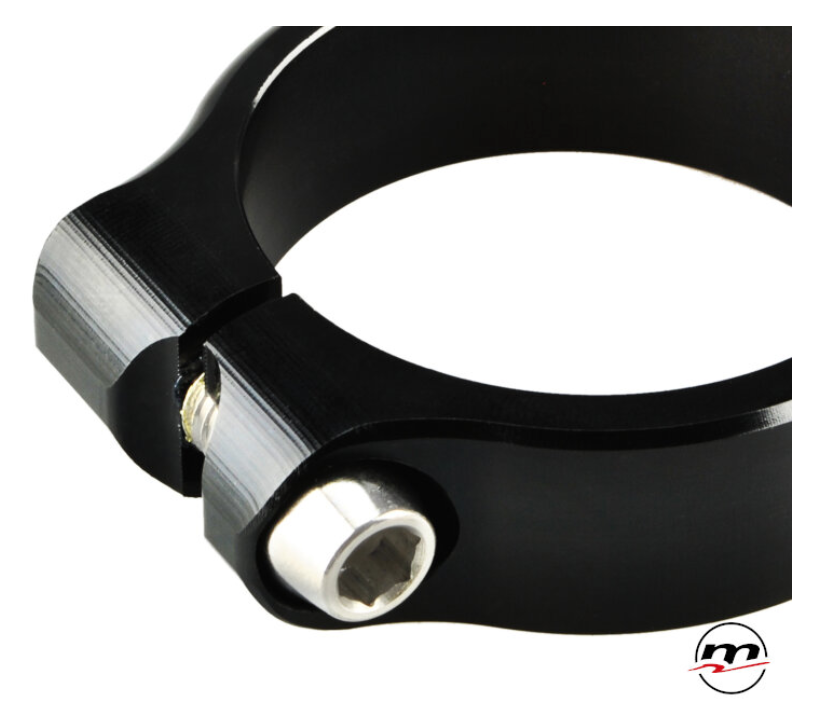

As in the previous version confirmed the presence of the vernier on the front of the bracelets, an element introduced for the first time by Melotti Racing and very appreciated for always having a precise reference on the opening of the handlebars.

In fact once the preferred driving setting has been identified, the latter can be easily restored after disassembly and reassembly operations on the front axle.

The plate is available in black (anodised) color, complete with stainless steel screws with a truncated cone head Pro-Bolt (official supplier of screws for most of the teams in the MotoGP and SBK world championship).

This plate allows the assembly of the original ignition lock; if you didn't need it, the racing version is available.
